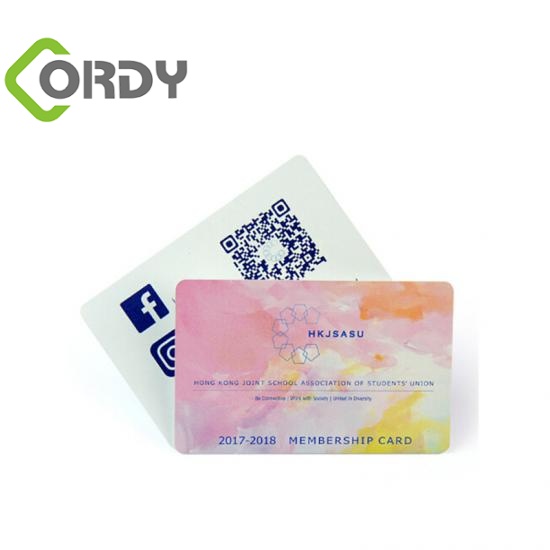

These custom RFID smart cards are waterproof, easy to carry, durable and have a long lifespan. Wide range of uses and high use value. As a leading RFID smart card supplier in China, we provide you with perfect customized services.
item no.:
13.56MHzMaterial:
PVCDimension:
85.6*54 standard /customized size/any other shapeColor:
white or as your printingFrequency:
13.56MHzPrintable Rewritable White 13.56MHz NFC Card Blank Chip Cards
SPECIFICATIONS RFID ISO CARD | |
Material: | PVC |
Dimension: | 85.6x54x0.88 |
Color: | Custom made printing. |
Frequency: | 13.56MHz |
Chip: | NTAG213/215/216 |
NXP's NTAG family fully complies to NFC Forum Tag specifications, ensuring universal interoperability with NFC devices (e.g., mobile phones, tablet PCs, and fixed readers).
Moreover, NXP based NTAG on the ISO 14443A standard, thus allowing easy integration into existing infrastructures using SmartMX.
The NTAG family provides varying memory sizes and other special features to allow the user to select the best cost-benefit option for a particular application.
Features | NTAG 213 | NTAG 215 | NTAG 216 |
Standard | ISO/IEC14443 Type A, NFC Forum Type 2 | ISO/IEC14443 Type A, NFC Forum Type 2 | ISO/IEC14443 Type A, NFC Forum Type 2 |
Memory | |||
User Memory | 144 bytes | 504 bytes | 888 bytes |
Write Endurance | 100,000 cycles | 100,000 cycles | 100,000 cycles |
Data Retention | 10 years | 10 years | 10 years |
RF-Interface | |||
Frequency [MHz] | 13.56 MHz | 13.56 MHz | 13.56 MHz |
Baud rate | 106 kbits/s | 106 kbits/s | 106 kbits/s |
Anti-collision | bit-wise | bit-wise | bit-wise |
Operating Distance | up to 100 mm | up to 100 mm | up to 100 mm |
Input capacitance | 50 pF | 50 pF | 50 pF |
Security | |||
Unique Serial Number | 7 bytes, cascaded | 7 bytes, cascaded | 7 bytes, cascaded |
Write Protection | Blockwise | Blockwise | Blockwise |
Originality signature | Yes | Yes | Yes |
Password protection | Yes | Yes | Yes |
|
|
Magnetic stripe |
Scratch panel |
(Loco:300oe: hico:2750oe) Basically, there are 2 widths for magnetic stripe; 8mm (2-track) 12.7mm (3-track) |
|
|
|
Barcode in different types(39/EAN 13/EAN 128...) |
Hotstamping gold/silver color |
|
|
Metallic silver |
golden color |
- Offset CYMK 4 colours
This is the most common method used in commercial printing.
The CMYK refers to the four inks used in the printing process: Cyan, Magenta, Yellow and Key (Black)
- Screen Printing
This method is used when the artworks only have limited colours and the accuracy is important.
We accept custom material and artwork/design order
Free design for you , we prefer you give us artwork file with either of below format
Coreldraw (.Cdr)
Adobe Illustrator (ai/.EPS/PDS)
Photoshop (PSD , 300dpi at least)
